JL Audio M6-770X-S-GmTi-i M6 Series 7.7" 100W RMS (200W Peak Power Handling) 4 Ohms, 2-Way Marine Coaxial Speakers w/ LED Light, Gunmetal Trim & Titanium Grille (Pair)
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 2-way Marine speakers
- • (2) Grilles
- • (12) 1-1/8" Philips-head stainless-steel screws
- • (12) Stainless-steel flat-washers
- • Template
- • Owner's Manual
Why Choose JL Audio M6-770X-S-GmTi-i Marine Speakers?
Maximum Sound and Stunning LED Effects
Experience premium audio on the water with JL Audio’s M6 7.7-inch Marine Coaxial Speakers, delivering 100 W of clean, powerful sound at 4 Ω. Purpose-engineered for real marine duty, these speakers provide exceptional performance in open-air boating environments. The Gray Metallic Trim Ring and Titanium Sport Grille offer a sleek, durable look, while Transflective™ RGB LED lighting adds vibrant, customizable accents for unmatched visual impact. Perfect for infinite-baffle installations, these speakers combine rugged marine engineering with high-performance sound and eye-catching style.
Powerful Bass and Crystal-Clear Highs
The oversized 7.7-inch woofer design maximizes efficiency, delivering more output with the same power while operating optimally with a large air volume (at least 2 cu. ft. / 57 L) for deep, full-bodied bass. Complementing the lows, the 1-inch pure silk dome tweeter is specially treated for marine environments, providing smooth, clean, and articulate high-frequency response—even at higher volume levels—for a balanced, high-performance sound on the water.
Protected, Balanced, and Versatile Performance
Enjoy reliable, high-fidelity sound with a multi-order, true 2-way passive crossover concealed within the woofer chassis, shielded from vibration and corrosion. The automatic solid-state tweeter protection circuit safeguards your highs, minimizing the risk of damage. These speakers perform well with as little as 40 W per channel, while pairing with recommended amplifiers providing 40–200 W continuous power per channel unlocks their full potential for balanced, powerful marine audio.
Vibrant Lighting and Trusted American Craftsmanship

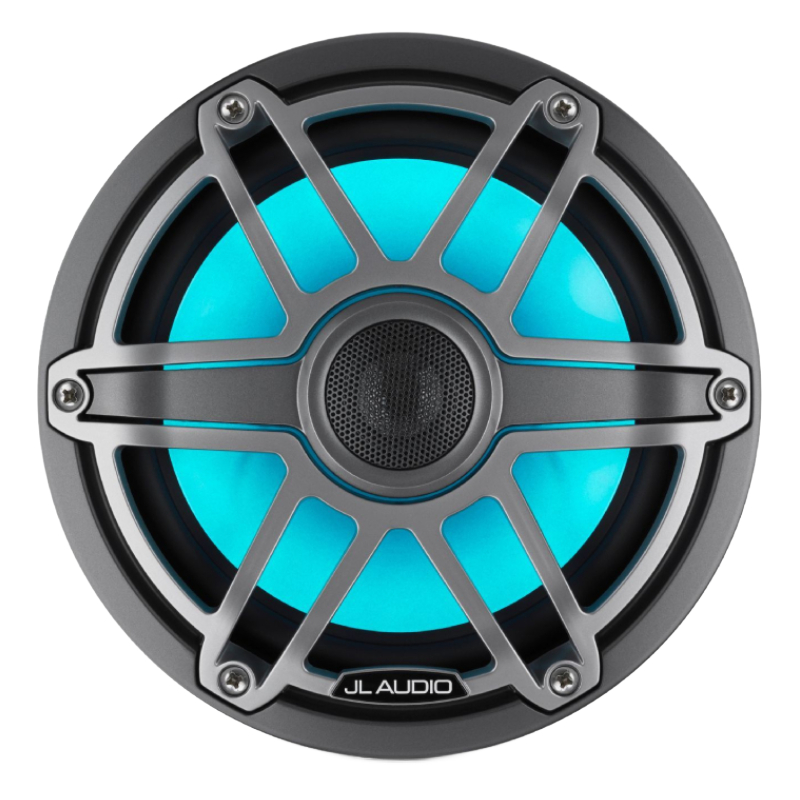

Featuring patent-pending Transflective™ RGB LED technology, these speakers emit a smooth, vibrant glow through the woofer cone with multiple color options. For even more customization, add an optional RGB controller to access thousands of color variations. Proudly manufactured in JL Audio’s Miramar, Florida factory using high-quality global components, these speakers combine striking visuals with durable, precision-engineered American craftsmanship.
Frequently Asked Questions (FAQ)
- • Why do my JL Audio M6-770X-S-GmTi-i speakers sound distorted when I increase the volume?
Distortion is usually caused by amplifier clipping, excessive bass boost, or improperly adjusted gain settings. Verify your amplifier is producing clean power and avoid pushing the source unit into distortion.
- • Why aren't my speaker LEDs working?
The LED lighting uses a separate wiring circuit and requires its own power source or compatible RGB controller. Double-check the LED wiring connections and polarity during installation.
- • Can I run it directly from my marine head unit?
Yes, the speakers can be powered by most marine stereos for moderate listening levels. However, using a dedicated marine amplifier will provide higher output and noticeably better sound quality.
- • Why do my speakers have weak midbass?
Poor midbass response is often caused by reversed speaker polarity or an unsealed mounting surface. Make sure the speakers are wired correctly and firmly mounted to eliminate air leaks.
- • Are the JL Audio M6-770X-S-GmTi-i speakers suitable for offshore saltwater boats?
Yes, these speakers are engineered with premium marine-grade materials that resist corrosion, moisture, and UV exposure. Rinsing them with fresh water after each outing helps preserve their appearance and performance.
- • Does cosmetic discoloration from storage affect how the speaker performs?
No, sellers of used units note that dulled or grayish coloring from storage conditions is purely cosmetic and doesn't affect sound quality or function.
- • What's the actual difference between the -i and non-i version of this speaker?
The "-i" suffix indicates the version with Transflective RGB LED lighting built in; the non-i version (M6-770X-S-GmTi) is the same speaker without the LEDs. Buyers who don't care about lighting can save some money by choosing the non-i variant instead.
- • Do I need to use a high-pass filter with the JL Audio M6-770X-S-GmTi-i?
Yes, a properly adjusted high-pass filter protects the speakers from excessive low-frequency signals. It also improves clarity and allows the speakers to play louder with reduced distortion.
- • Will it fit in my existing 7.7-inch speaker opening?
It fits many standard 7.7-inch marine speaker cutouts, but you should always verify the cutout diameter and mounting depth first. Checking the specifications before installation helps avoid unnecessary modifications.
- • How should I clean the JL Audio M6-770X-S-GmTi-i speakers after boating?
Rinse the speakers with fresh water to remove salt and debris, then wipe them with a soft cloth and mild soap if necessary. Avoid abrasive cleaners or high-pressure water that could damage the finish or LED components.
- Diameter : 7.7 Inch
- Sensitivity : 91 dB
- Impedance : 4 Ohm
- Frequency Response : 45-25000 Hz
- Peak Power Handling : 200 Watts
- Color : Gunmetal
- RMS Power Handling : 100 Watts
Features:
- Product Model: M6 7.7-inch Marine Coaxial Speakers with Transflective™ LED Lighting for Infinite-Baffle Use (100 W, 4 Ω) with Gray Metallic Trim Ring and Titanium Sport Grille
- Marine Duty: Purpose-engineered for real marine environments, delivering maximum audio performance with the added visual impact of Transflective™ RGB LED lighting
- Oversized Design: 7.7-inch design increases efficiency for more output with a given amount of power; optimized to operate with a large volume of air (at least 2 cu. ft. / 57 l)
- Tweeter: 1-inch pure silk dome tweeter, treated for marine environments, offers clean and articulate high-frequency response, especially at higher volume levels
- Crossover: Multi-order, true 2-way passive crossover concealed within the woofer chassis, shielded from vibration and corrosion
- Protection Circuit: Automatic, solid-state tweeter protection circuit included to minimize the possibility of tweeter failure
- Amplifier Compatibility: Can be used with as little as 40 W per channel; recommended amplifiers capable of 40-200 W continuous power per channel for optimal performance
- LED Lighting: Patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with several color options and the possibility to add an RGB controller for thousands of color variations
- Manufacturing: Produced in JL Audio’s Miramar, Florida factory using global components and materials
Specifications:
- Speaker Size: 7.7 inches
- Design: 2-way
- Tweeter Design: 1" Dome
- Tweeter Composition: Treated Silk
- Woofer Composition: Mica-Filled IMPP
- Woofer Surround: Rubber
- Sensitivity: 91 dB at 1 watt
- Frequency Response: 45 - 25k Hz
- Max RMS Power Handling: 100 watts
- Peak Power Handling: 200 watts
- Impedance: 4 ohms
- Top-mount Depth: 3 7/16 inches
- Bottom-mount Depth: N/A
- Cutout Diameter or Length: 6 1/4 inches
- Bolt Circle: 6.928 inches
- UPC: 699440936040
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
